IOT Lab Kit

IoT Lab & Development Kit

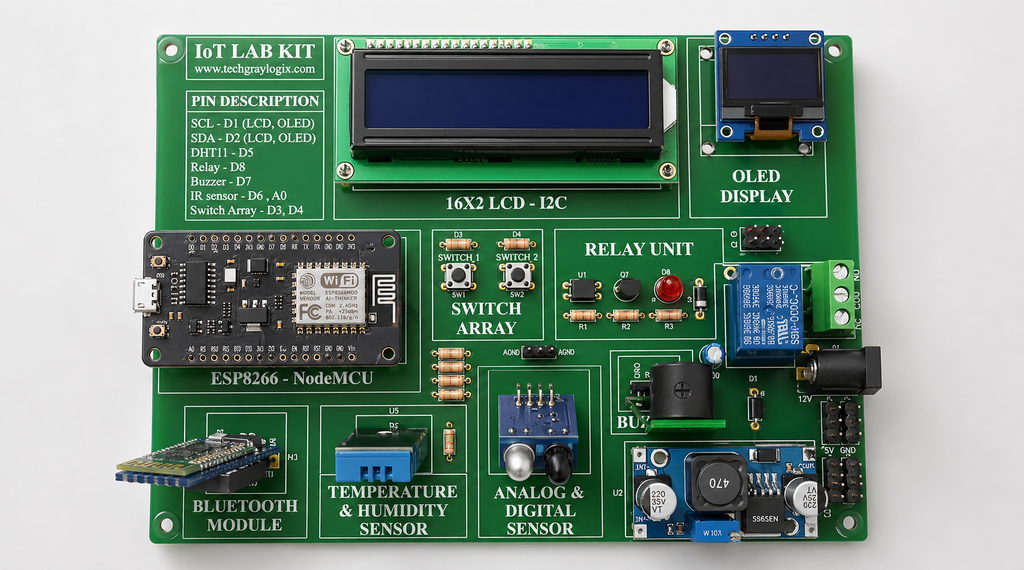

The core of this kit is the Plug-and-Play Development Board, which provides a standardized platform for all the included peripherals. By using pre-routed PCB tracks for critical connections (like I2C for displays), it ensures signal integrity and prevents common breadboarding errors.

Why it’s a Development Powerhouse:
• Native Wi-Fi Connectivity: Unlike standard Arduino kits, the NodeMCU has built-in Wi-Fi. This means your projects can send emails, post to Twitter, or update a Google Sheet without any extra expensive shields.
• Dual Display Feedback: The kit includes both a 16x2 LCD (for simple text/status) and an OLED Display (for high-resolution graphics and charts), allowing you to build professional-looking interfaces.
• Environment & Motion Sensing: With the DHT11 (Climate) and IR sensors (Object detection) included, you can immediately begin building smart home or industrial monitoring systems.
• Physical Control: The on-board Relay Module allows the low-power NodeMCU to switch high-voltage appliances (like lamps or fans) on and off, making it a true home automation starter.

Technical Highlights:
• Main Controller: NodeMCU (ESP-12E module).
• Communication: UART, I2C, SPI, and Wireless (Wi-Fi/Bluetooth).
• Programming Environment: Fully compatible with the Arduino IDE, MicroPython, and Lua.
• Power Management: Includes a 12V DC Adapter with on-board regulation to safely power all modules simultaneously.

The "Rapid Prototyping" Workflow:
1. Sense: The NodeMCU reads data from the DHT11 (Temperature) or IR sensor.
2. Display: Real-time values are shown locally on the OLED or I2C LCD.
3. Transmit: The ESP8266 sends this data to an IoT cloud (like Blynk, Thingspeak, or AWS) via Wi-Fi.
4. Act: If a threshold is met (e.g., it's too hot), the NodeMCU triggers the Relay to turn on a cooling fan or sounds the Buzzer.
